Data Set
The challenge is to identify simulated signals buried in the simulated data set that we provide. The data is saved in a particular binary format called frame files, which is the format accepted by the gravitational-wave (GW) observatories worldwide. The data set consists of 2-hours worth of simulated data from a future GW observatory called IndIGO. Each frame file contains a channel calledI1:INDIGO-STRAIN storing 3600 seconds of "strain" data. The frame file also contains related information, such as the sampling rate of the data, the GPS time-stamps etc.http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977875220-3600.gwf
(113 MB)http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977878820-3600.gwf
(113 MB)Above, 977875220 and 977878820 shows the starting GPS time of each frame (corresponding to UTC times 2011-01-01 00:00:06 and 2011-01-01 01:00:06) and 3600 shows the length of the data in each frame file (3600 seconds).
The best way to download the data in a Unix-like operating system would be to use the GNU wget
tool, which usually comes pre-installed with any Unix-like system. In the shell type:wget http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977875220-3600.gwf wget http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977878820-3600.gwf
This should download the frame files to your computer.
Data in ASCII text format
For those who have trouble dealing with the frame library, we have also created ASCII/text files of the mock data. These can be downloaded from here:http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977875220-3600.txt.gz
(158 MB)http://www.gw-indigo.org/mdc-2011/data/frames_4k_v2/I-INDIGO-977878820-3600.txt.gz
(158 MB)The text files are of the form:
#start time 977875220 #stop time 977878820 #sampling rate 4096.0 Hz -1.779599161844960676e-17 -1.811919829796309542e-17 -1.812375465960586710e-17 ....
Software tools
We recommended using high-level programming languages such as Matlab/GNU-Octave or Python. For all practical purposes, "high-level'' just means they are easy to learn and use! Additionally, Octave and Python are free software, and come preinstalled with many Unix-like operating systems. Indeed, the participants are free to use any language of their preference. But reading the binary files containing the GW data (frame files) is particularly easy with these languages. We will also assume that the participants are using a Unix-like operating system, such as GNU Linux, Solaris, Mac OS X, BSD etc. Some useful resources for Matlab/Octave/Python are given below:Matlab
- Matlab page: http://www.mathworks.com/products/matlab/
- Matlab documentation: http://www.mathworks.com/help/techdoc/
- Introduction to Matlab:
Octave
- Octave home page: http://www.gnu.org/software/octave
- Octave documentation: http://www.gnu.org/software/octave/doc/interpreter
- Introduction to Octave:
Python
If you are using a Unix like operating system there is high chance that your OS has already Python installed. In the shell terminal typepython. For this primer we will assume you are using a version of Python >= 2.4. If your OS does not have Python, you can install the appropriate version from the Python homepage.- Python home page: http://www.python.org/
numpy. Similary scipy package comes with necessary scientific subroutines to do data analysis. Sub-packages needed for Python:- numpy: http://numpy.scipy.org/
- scipy: http://www.scipy.org/
- Enthought Python download page: http://www.enthought.com/products/edudownload.php
- General Python tutorial: http://docs.python.org/tutorial/
- numpy tutorial: http://www.scipy.org/Tentative_NumPy_Tutorial
- scipy tutorial: http://docs.scipy.org/doc/scipy/reference/tutorial/index.html
- numpy for MATLAB users: http://www.scipy.org/NumPy_for_Matlab_Users
- scipy cookbook: http://www.scipy.org/Cookbook
Frame library
The data collected by GW observatories worldwide is stored in a particular binary format, called frame format. A frame is a unit of information from the interferometer data over a finite time interval. The frame library is a collection of tools to read and manipulate frame files. To install the Frame library, first download the latest version from: http://lappweb.in2p3.fr/virgo/FrameL/.The example below shows how to download, compile and install the frame library. The executing the following commands in a Unix-type system should work:
wget http://lappweb.in2p3.fr/virgo/FrameL/libframe-8.15.tar.gz tar xzvf libframe-8.15.tar.gz pushd libframe-8.15 ./configure --prefix=SUITABLE_FOLDER_WHERE_YOU_WANT_TO_INSTALL make make install popd
To be able to link frame library with other programs it is useful to have
pkg-config program. Most probably your OS should have pkg-config pre-installed. If not you can download and install it from:http://www.freedesktop.org/wiki/Software/pkg-config.
The following example demonstrates the usefulness of
pkg-config.$ export PKG_CONFIG_PATH=FOLDER_WHERE_YOU_INSTALLED_FRAMELIB/lib/pkgconfig:$PKG_CONFIG_PATH $ pkg-config --libs --cflags-only-I libframe
And as an output of the above command you will get something similar to what is show below.
-I/opt/local/include -L/opt/local/lib -lFrame
This header and library locations will help to link other programs with the frame library. There are wrapper codes to use the frame library to read/write frame files in Matlab/Octave/Python.
Frame library interface to Matlab/Octave/Python
This section describes how to read data into Matlab/Octave/Python. Mostly we will assume that the platform is Linux. But these instructions should work in any Unix-type system with minor changes.Matlab
The Frame library also provides a "mex" file which can be used to read the data stored in the frame files to Matlab. First we need to compile the source code to create the mex file. Start Matlab, and go to the following directory:~/libframe-8.15/matlabYou should be able to see the file
frgetvect.c here. Now compile the mex file in Matlab command window:>> mex frgetvect.c FOLDER_WHERE_YOU_INSTALLED_FRAMELIB/lib/libFrame.so -I../src
This will create a mex file
frgetvect.mexa64 (the extension depends on the system architecture). Copy frgetvect.mexa64 and frgetvect.m to your working directory or add ~/libframe-8.15/matlab to your Matlab path. Make sure that Matlab can access the mex file by typing:>> which frgetvect
in the Matlab command window. Matlab should return the location of the newly compiled mex file. Type
help frgetvect to see how to use this function. Here is an example:>> [d, t] = frgetvect('I-INDIGO-977875220-3600.gwf', 'I1:INDIGO-STRAIN', 977875220, 16, 0);
Warning: frgetvect:info:Opening I-INDIGO-977875220-3600.gwf for channel I1:INDIGO-STRAIN
(t0=977875220.00, duration=16.00)

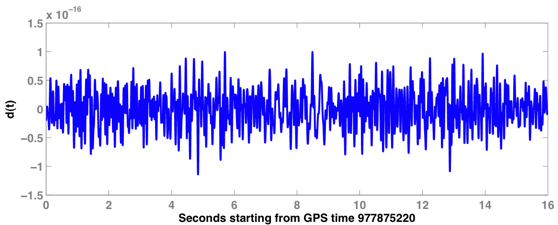

>> figure; plot(t, d); xlabel('Seconds starting from 977875220'); ylabel('d(t)');This will plot 16 seconds of time-series data starting from GPS seconds 977875220, as shown in the Figure below.
An example of the time series data retrieved from frame ?les.
Octave
Go to the directory~/libframe-8.15/octave, and open the Makefile using a text editor. In the Makefile change the following variables to point to the location of your newly installed frame libraryFRAME_INC = FOLDER_WHERE_YOU_INSTALLED_FRAMELIB/include FRAME_LIB = FOLDER_WHERE_YOU_INSTALLED_FRAMELIB/lib
Now type
make in the shell. This will create, among other files, a binary file called loadframe.oct. Copy loadframe.oct and loadframe.o to your working directory or add ~/libframe-8.15/octave to your Octave path. Do help loadframe in the Octave command line to see how to use this function. Here is an example:octave:1> [d, fs] = loadframe("I-INDIGO-977875220-3600.gwf", "I1:INDIGO-STRAIN", 1, 977875220);
octave:2> length(d)/fs
ans = 3600Note that, unlike the case of the Matlab mex file, here we cannot specify the length of data to be read in a single call:
loadframe loads the entire data in the frame file (3600 seconds) into the vector d, and hence is rather slow. Also, fs = 1/ dt is the sampling frequency of the data.Python
Pylal is a package which offers several python based routines to do GW data analysis. Here we will use a strip-down version of pylal only to be used to read the frame data. Assuming you have numpy, pkg-config and wget you can just download the following script and run it. This shell script will install both the frame library and the pylal python wrapper for you in any Unix like OS:http://gw-indigo.org/mdc-2011/tools/install_python_tools.sh
.By default this installs in the following directory:
~/indigo_python/install. To use the python frame reading wrapper do:source ~/indigo_python/install/pylal/etc/pylal-user-env.sh
Then you can start Python. In Python prompt do:
>>> from pylal import Fr
You can load a gwf file into a python array using
frgetvect function, e.g.frame = Fr.frgetvect("I-INDIGO-977875220-3600.gwf","I1:INDIGO-STRAIN")Now let's look at this array:
>>> frame
(array([ 3.85241898e-17, 3.70307674e-17, 3.55302314e-17, ...,
-3.90825860e-17, -3.74059633e-17, -3.56520304e-17]), 977875220.0, ('',), '')The first index holds time series strain data (Note: unlike MATLAB/Octave, Python starts counting array index from 0):
>>> frame[0] array([ 3.85241898e-17, 3.70307674e-17, 3.55302314e-17, ..., -3.90825860e-17, -3.74059633e-17, -3.56520304e-17])
The second index shows the GPS start time of the frame.
>>> frame[1] 977875220.0
The fourth index shows the inverse of sampling rate, i.e. spacing between the time-series strain data.
>>> frame[3] (0.000244140625,) >>> frame[3][0] 0.000244140625 >>> 1/frame[3][0] 4096.0
This particular frame file has 3600 s of data, which we can verify by,
>>> len(frame[0])*frame[3][0] 3600.0
